400w Neutral White 430㎡ Inflatable Light Tower

400W Inflatable Lighting Tower Portable with Neutral White and 430㎡ Lighted Area

1. Inflatable Light Tower description:

Main features

We have several lines of inflatable light towers for portable emergency lighting and illumination for highway construction, traffic control, EMS scenes, and for attractive and informative lighting at public and private events.Portable, powerful , can easily be carried and set up by one person in minutes.

Suggested minimum illumination requirements are presented as below. Typical night work activities are assigned to one of three lighting requirement categories:

Category I Minimum illumination of 54 lx
Category II Minimum illumination of 108 lx
Category III Minimum illumination of 216 lx

The National Cooperative Highway Research Program (NCHRP) Report 498: Illumination Guidelines for Nighttime Highway Work

Suggested minimum illumination requirements are presented below.

Level I
illuminance is important in areas where the work crew is in motion, moving from spot to spot. This level of
illuminance is appropriate for tasks requiring low accuracy, involving slow-moving equipment, and where there are
large objects to be seen.
Level II
illuminance is recommended for areas on or around construction equipment to provide a safer environment
for the workers operating the equipment, allowing them to perform tasks that require a moderate level of accuracy, as
described in Table 1 above.
Level III
illuminance is appropriate for those tasks that require a greater level of visual acuity or for tasks with a
higher level of difficulty.

2. Technical parameters:

3. Product Dimension:

1 x 400w metal halide

4M height column

4. Installation:

mounted on the tripod

5. General Feature:

The system consists of inbuilt genet of 1.2KVA, two blowers, 400W metal halide lamp. First the user has to switch on the genset and then blowers to inflate the cloth at a height of 4.5 meters from the ground level. Further we switch on the lamp which illuminates an area upto 10,000 Square meters.

AdvantagesColumus MH400w,

120/230V AC- 120V/208V/240V/277V AC (alternative current)

- lamps - metal halide

- works on grid power 120V/60Hz in North America or 230V/50Hz rest of the world

- Quick and easy set-up

Columus HMI575,

120/230V AC- 120 / 230 V AC (alternative current)

- lamps - HMI

- works on grid power 120V/60Hz in North America or 230V/50Hz rest of the world

- Quick and easy set-up

6. Package:
HIcase Packing


7. Shiping:
Normally, the goods will be shipping by Sea, by air or by DHL according to customer's request

1) Strong and professional package Hicase for safety transportation.
2) Clear label Item show what is product in the cartons, including watts, CCT, quantity,etc.


8. Certification:

CE, ISO9001,ROHS

9. FAQ:
What are your main products?
Our main products are Events Balloon Lighting, Inflatable Light Tower ,rescue lighting , Construction and Worksite Lighting ,Emergency and Safety Lighting and so on, OEM are welcome.

What is the location of your company?
Our company is located in Wuxi city, Jiangsu province in China, near the biggest sea ports of China Shanghai port, about 3 hours by car. If you would like to have a visit, welcome.

What is your MOQ?
Our MOQ is usually 1PCS, first trial order can be to be discussed.

What is the shipping port?
We ship the goods via DHL, TNT Fedex.

What is your delivery time?
The time of delivery is about 10~20days after we receive the deposit.

What are your payment terms?
We accept 30% T/T in advance, or paypal, Western Union, to be discussed.

What is your sample time?
Usually we will take5-7 days to make the samples.

TAG:

Events Space Lighting

Events decoration balloon lighting

Events outdoor illuminate lighting

Lighting cone

Lighting decoration

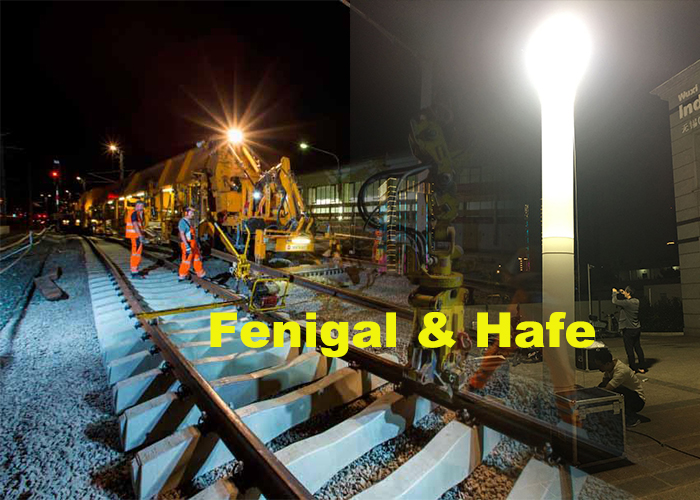

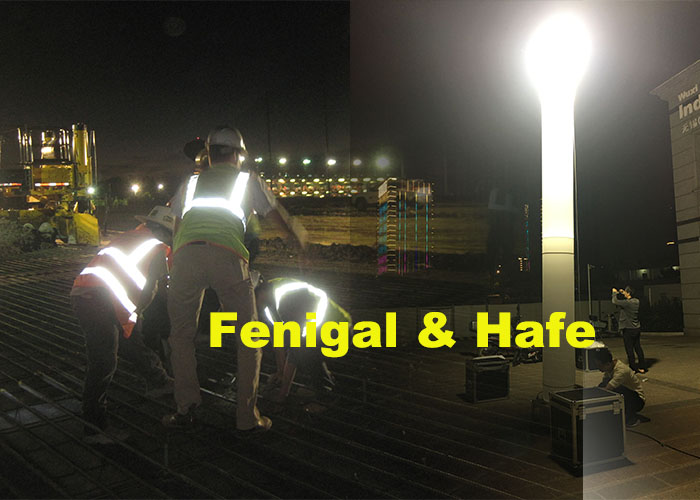

10. Lighting Effect & Application:

430㎡ inflatable light tower

400W inflatable light tower

neutral white inflatable light tower

400w Neutral White 430㎡ Inflatable Light Tower Images
